Description
Tea Bag Sample:

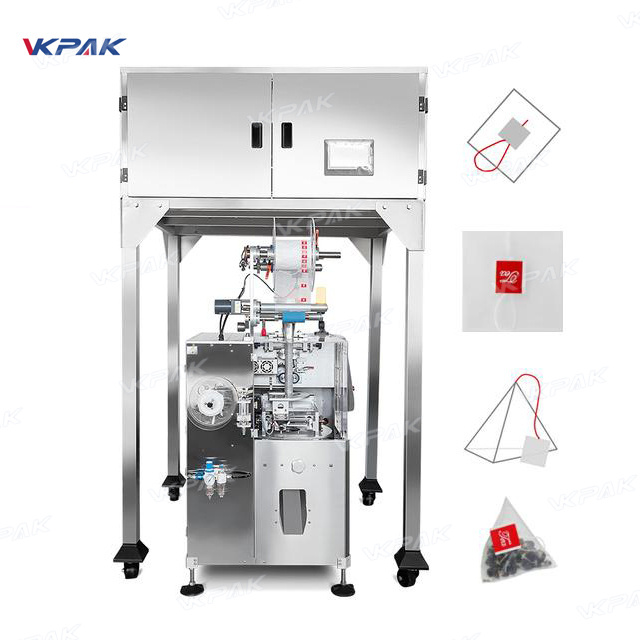

This machine can make pyramid tea bags and rectangular tea bags.
Electronic weighing method:
This machine can not only make pyramid tea bags but can also be adjusted into rectangular tea bags. Just click on the touch screen to switch the bag shape.
Electronic Scale System：
The machine uses an Electronic Scale System to package different tea combinations in one bag. The limit is 12 kinds of tea.（If it is tea powder packaging, the feeding device needs to be a screw feeder）
Mixed tea bags can be achieved by placing different tea leaves in different material trays.
Electrical power system:
Quality brand electric system like Schneider. PLC control system bewith YOUNGSUN with Reliable quality
Touch Screen:
PLC controller and colour touch screen,all parameters can be set onthe control panel. easy to operate. language switchable (Any adjustments that need to be made need to be made on the touch screen.)
If you want to pack tea bags of different sizes, you only need to change the former. (We have a complete operation video. It can easily guide you how to replace the tea bag packaging machine's former)
Waste Collection Device:
The remaining film is collected by this device for easy recycling.
| Name | VK-ZF90 Pyramid Tea Bag Packaging Machine |
| Pack Range | 1-10g |
| Bag Length | 45-90mm |
| Bag Width | 40-90mm |
| Speed | 70-100 bags/min |
| Machine Dimension(L*W*H) | 1000*1000*2260mm |
| Machine Weight | 410kg |
| Power | AC220V/ 50-60HZ/2KW |
| Gas Source | ≥0.6Mpa |
| The Material ofPacking Film | Nylon, Polyester Net, Non-woven Fibries, Corn Fiber(Food Grade) |
| Weighting Method | 2-head Electronic Scale/4-head Electronic Scale/6-head Electronic Scale |

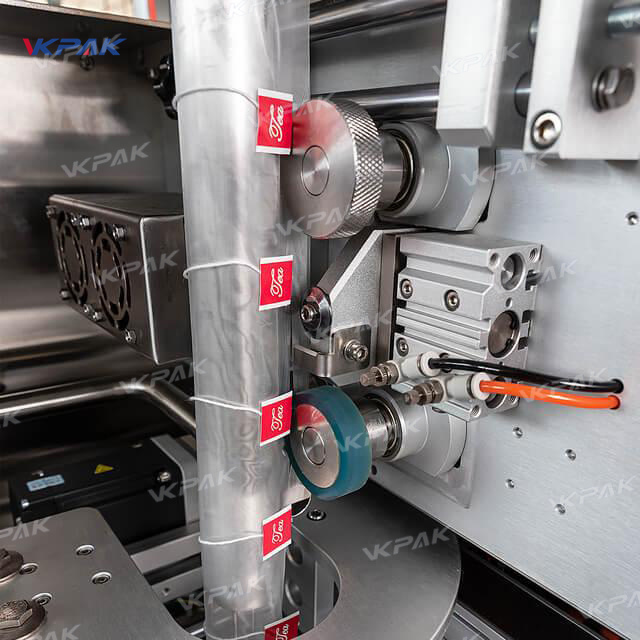

- Ultrasonic sealing & cutting technology produce neat and beautifultea bag.
- Top precision dosing weighing system.
- Easy to convert from pyramid tea bag to rectangular tea bag throughone button.
- Feature a variety of product infeed options depends on differentpackaging applications.
