Description

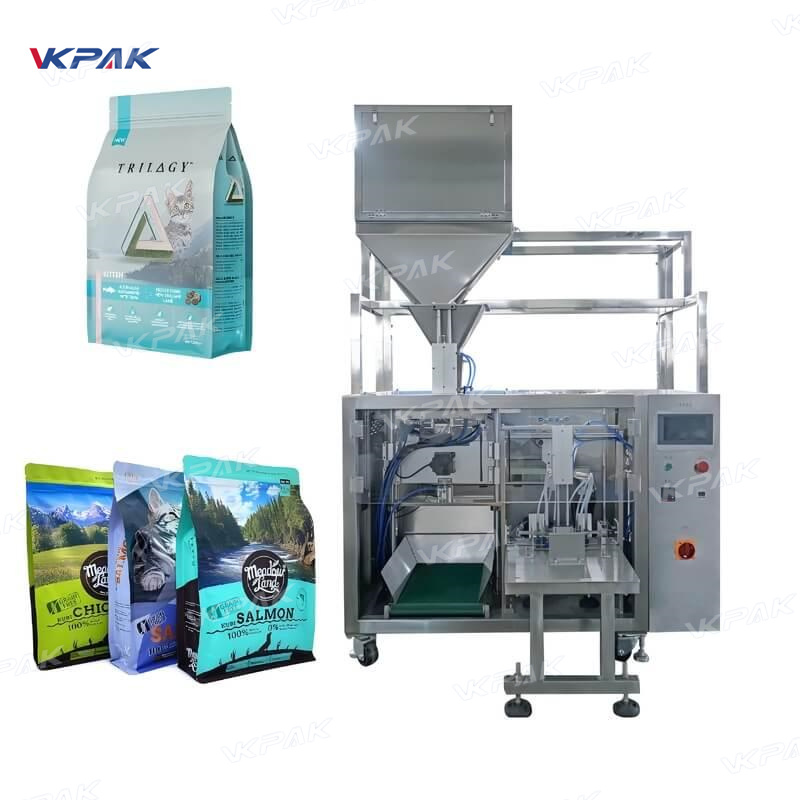

VK-SP350K zipper bag packaging machine for cat and dog food is designed to automate the process of packaging pet food into resealable bags, typically with a zipper or other recloseable feature. VK-SP350K offer many benefits for maintaining the quality and freshness of pet food while providing convenient packaging for customers.
| Measuring Scope | 1-5kg（customizable） |
| Packing size | (L): 200-480mm (W): 200-350mm |
| Speed | 10-20BAGS/MIN |
| Machine Dimension(L*W*H) | 1390*920*1040 mm |
| Machine Weight | 500kg |
| Total Power | AC220V150-60HZ/2KW |
| Gas Source | ≥0.6Mpa |
| Bag Type | Prefab bag |
| PackingMaterial | Packing material: PE composite film, such as: pure aluminum, aluminumplating and other prefabricated bags. |
Key Features
Automatic Bag Feeding System:
Uses a rotating or linear system to pick up and open pre-made zipper bags.
Aligns bags accurately for filling and sealing, ensuring consistent positioning.
Multi-head Weighing System:
Uses a set of load cells to accurately measure out portions of pet food.
Suitable for weighing dry kibble or treats of varying sizes and shapes with high precision.
Adjustable weight settings to match different product specifications.
Bag Opening & Filling Mechanism:
Integrated with pneumatic or servo systems to open, fill, and hold bags securely.
Offers versatility for filling various bag types and materials, such as polyethylene, polypropylene, or laminated materials.
Dust Collection System:
A vacuum or suction system helps collect dust and fine particles during the filling process, ensuring a clean work environment and better product quality.
Zipper Sealing Mechanism:
Heat-sealing mechanisms with precise temperature and pressure control ensure an airtight and leak-proof seal.
Can handle various bag materials that require different sealing temperatures and pressures.
Consistent sealing quality, ensuring the zipper remains functional for multiple uses.
Nitrogen Flushing Option:
Adds nitrogen gas before sealing to displace oxygen, preserving freshness and extending shelf life.
Reduces oxidation, preventing spoilage, and preserving flavors and nutritional quality.
Product Inspection & Quality Control:
Equipped with sensors and inspection cameras to check for any product or sealing issues.
Rejection system that identifies and separates defective bags for quality assurance.
User-friendly Control Panel:
Typically has a touchscreen interface with options to adjust settings, such as fill weight, bag size, sealing time, and temperature.
Programmable for different product types, enabling quick switching between different product sizes and weights.
Modular Design for Easy Maintenance:
Built with easy access for cleaning and maintenance, reducing downtime.
Components are modular, meaning individual parts can be replaced or repaired without taking apart the entire machine.
High-speed Production Capabilities:
Designed to handle a high output, making it ideal for large production volumes.
Operates at speeds that can be adjusted to meet production demands, depending on the bag size and fill weight.
Main Functions
Bag Filling: Accurately dispenses the correct amount of pet food into each bag.
Bag Sealing: Creates a secure, resealable seal that ensures freshness.
Labeling: Optionally integrates a printer or label applicator for adding product information.
Weighing & Counting: Ensures precise portioning, reducing waste and maintaining consistency.
Product Sorting & Rejection: Detects and removes defective or poorly sealed bags.
