VK-SP160J Pre-Made Bag Liquid Cat Food Packaging Machine
VK-SP160J Pre-Made Bag Liquid Cat Food Packaging Machine
VK-SP160J Pre-Made Bag Liquid Cat Food Packaging Machine
VK-SP160J Pre-Made Bag Liquid Cat Food Packaging Machine

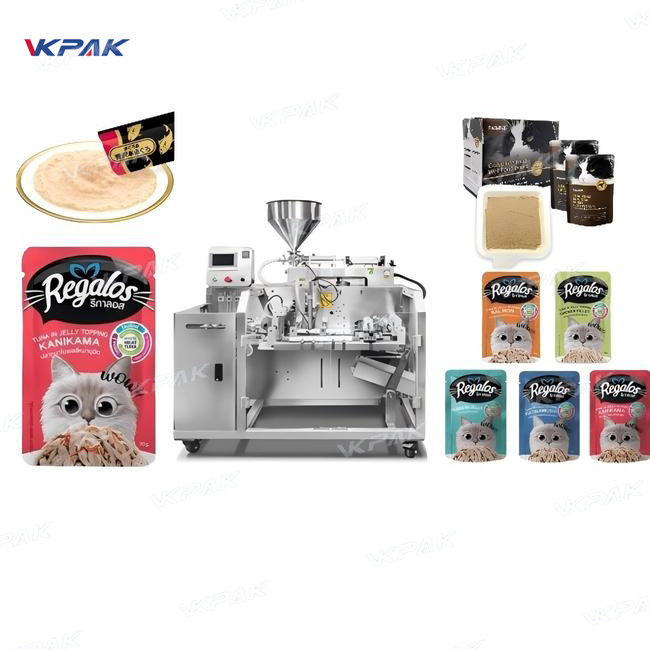

VK-SP160J Pre-made bag liquid cat food packaging machine is suitable for pre-bag packaging of various liquid and paste materials with good fluidity, such as food, chicken juice, tomato sauce, jelly, cooking oil, washing liquid, etc;

Multi-station: bag filling and sealing;

Automatic alarming function and stop when the inadequate air pressure.

  • Model: VK-SP160J
  • Speed: 20-30BAGS/MIN
  • Bag Size: Length:100-220mm Width:80-160mm
  • Pack Weight Range: 100-500ml
  • Film The Material: Any premade pouch such as Stand-up bag, Stand-up bagwith zip, Back-sealed bag, Gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag Self-sealed bag etc.
  • Gas Source: ≥0.6Mpa
  • Bag Shape: Any premade pouch such as Stand-up bag, Stand-up bagwith zip, Back-sealed bag, Gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag Self-sealed bag etc.
  • Machine Size: 1424*980*1343mm
  • Weight: 450kg
Category:

Description

One-stop solution: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

VK-SP160J Pre-Made Bag Liquid Cat Food Packaging Machine

1. This is a fully-automatic packing machine with Multi-function which can be integrated with various filling systems.

2. Horizontal bagging device, capable of accommodating a large number of bags

3. Servo motor to control and high speed to work.

4. Automatic alarming function and stop when the inadequate air pressure.

5. High  precision horizontal bag feeding device, speed adjustable)

ModelVK-SP160J
Measuring Scope20-500g（customizable）
Packing sizeLength:100-220mm   Width:80-160mm（customizable）
Speed20-35BAGS/MIN
Machine Dimension(L*W*H)1424*980*1343 mm
Machine Weight450kg
Total PowerAC220V150-60HZ/2KW
Gas Source≥0.6Mpa
Bag TypePrefab bag
PackingMaterialPacking material: PE composite film, such as: pure aluminum, aluminumplating and other prefabricated bags.
