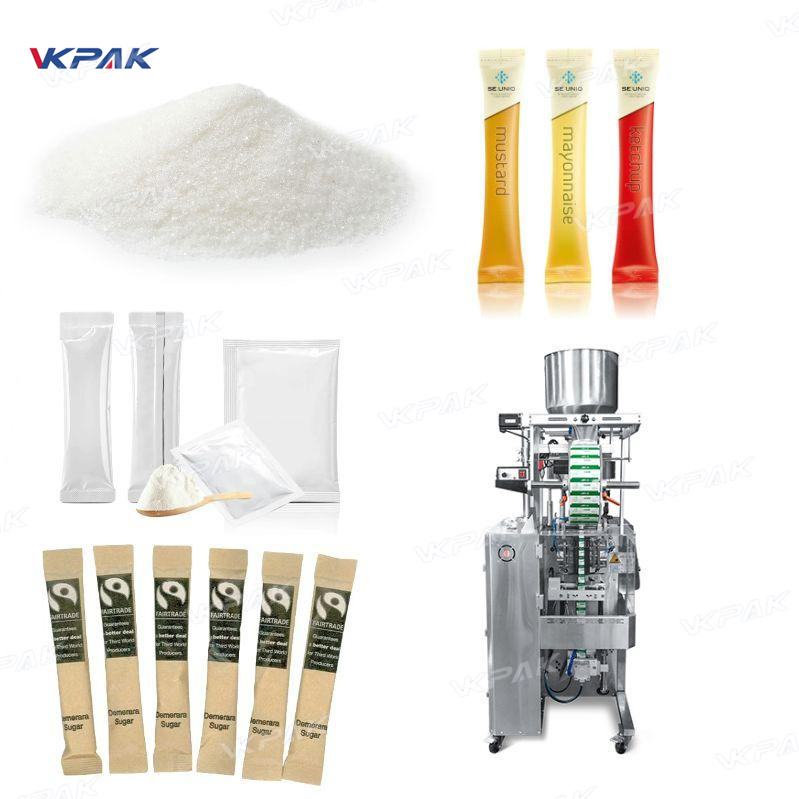

VK-65K Sugar coffee Stick packing machine Suitable for measuring and packaging of granular items in food, medicine, chemical and cosmetic industries;

Precise Servo Motor-Controlled Film Pulling: The servo motor ensures accurate film pulling, leading to consistent bag sizes and minimal material waste;

Round Corner Cutting for Premium Packaging: The ability to cut round corners enhances the product’s aesthetic appeal and consumer experience.

  • Model: VK-65K
  • Speed: 30-60bag/min
  • Bag Size: Length:30-180mm Width:20-75mm
  • Pack Weight Range: 1-100g(customizable)
  • Film The Material: PE composite film, such as: pure aluminum, aluminumplating and other prefabricated bags
  • Gas Source: ≥0.6Mpa

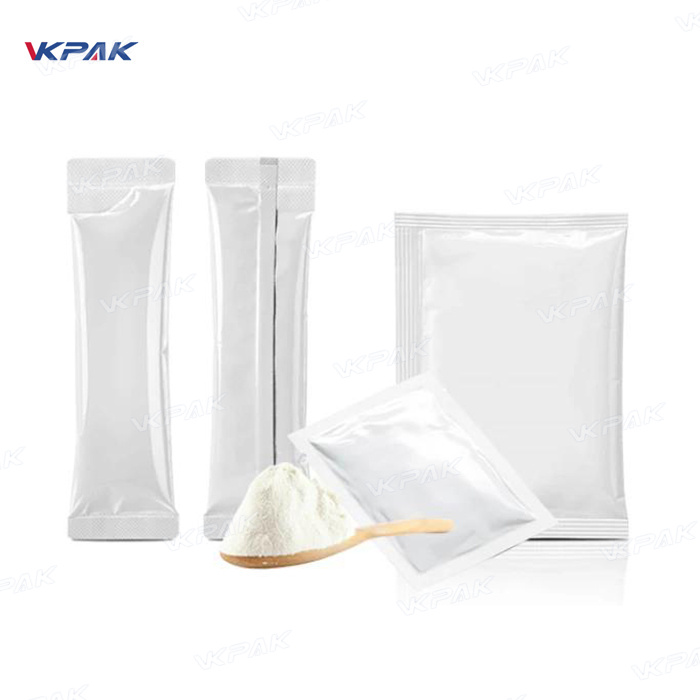

  • Bag Shape: Back seal, three side seal, four side seal
  • Machine Size: 790*1050*1600mm
  • Weight: 350kg

Description

The machine is designed for the automatic filling of various granular products into bags. It is ideal for packaging items such as sugar, salt, coffee, seeds, sesame, beans, desiccants, health supplements, and more. Its versatility makes it suitable for a wide range of industries, from food and beverages to pharmaceuticals, ensuring efficient and precise packaging for both small and large-scale production.
VK-65K Sugar Stick Packing Machine

ModelVK-65K
Pack Range1-100g
Bag Length30-180mm
Bag Width20-75mm
Speed80-130 bags/min
Machine Dimension790*1050*1600mm(L*W*H)
Machine Weight300kg
Air Source0.6Mpa
Sealing TypeThree side seal, back seal
Form OfMeasurementVolumetric Cup System
Packing MaterialBOPP/Polyethylene,Aluminium/Polyethylene, Paper/Polyethylene Polvester/Aluminizer/Polvethvlene
MaterialFood, Medicine, Chemical industry, Cosmetics industry of particlesofmeasurement packing

The VK-65K clamp-type round corner packaging machine is an efficient solution designed for packaging white sugar into stick bags with round corners. Equipped with a servo motor-controlled film pulling system, the VK-65K offers precise control over the packaging process, ensuring high-quality, consistent results with the ability to cut round corners for enhanced product appeal.

Packaging Solution

Servo Motor-Controlled Film Pulling

The VK-65K utilizes a servo motor to control the film pulling process, ensuring accurate and smooth film movement throughout the packaging cycle. This technology provides precise tension and alignment, which is essential for producing consistent stick bags, preventing material waste, and ensuring high-quality packaging.

Stick Bag Packaging for White Sugar

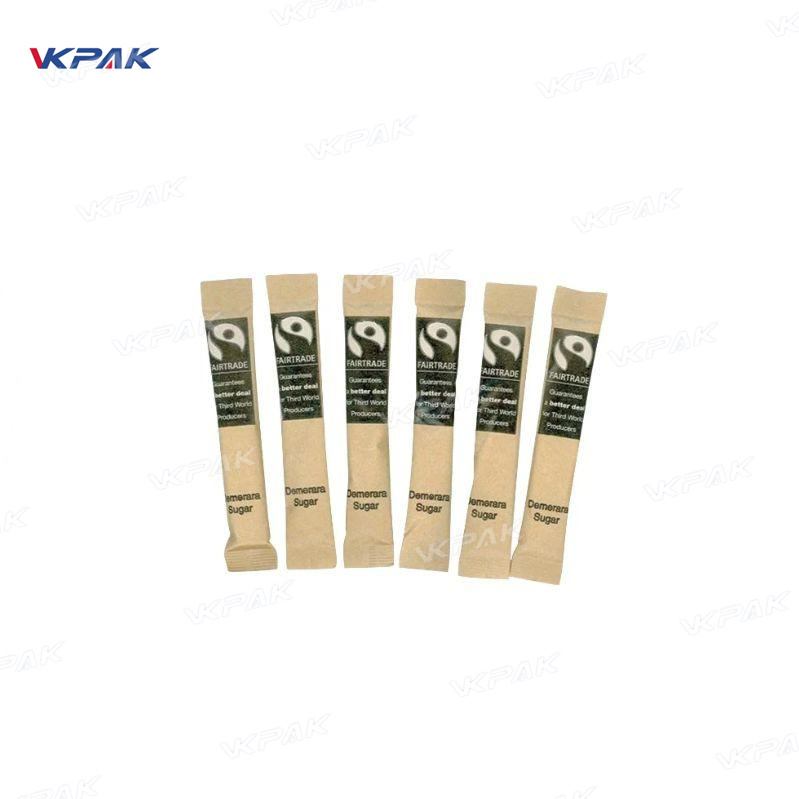

The machine is specifically designed to package granular products like white sugar into stick bags. The stick bag format is ideal for portion-controlled packaging, commonly used for sugar in restaurants, hotels, and cafes. The VK-65K ensures each stick bag is filled with the exact amount of sugar, maintaining consistency across the entire production line.

Round Corner Cutting for Enhanced Aesthetics

One of the key features of the VK-65K is its ability to cut round corners on the stick bags. This not only improves the aesthetic appeal of the packaging but also makes the product more user-friendly, preventing sharp edges that could cause discomfort to consumers. The round corner feature enhances product differentiation and adds a premium look to the packaging.

Clamp-Type Sealing for Durability

The VK-65K uses a clamp-type sealing mechanism that ensures strong, durable seals on each stick bag. This method is highly effective for maintaining the integrity of the packaging, preventing leaks or spills, and ensuring the white sugar remains fresh and secure within the bag.

Flexible Packaging Sizes

The machine allows for easy adjustments to accommodate various stick bag sizes, providing flexibility in production. Whether packaging small, single-use sugar sticks or larger portions, the VK-65K can be quickly adapted to meet different market demands.

High-Speed and Efficient Operation

Designed for high-speed production, the VK-65K operates efficiently with minimal manual intervention. Its automation capabilities allow for continuous operation, making it ideal for large-scale sugar packaging operations looking to maximize output and reduce labor costs.

User-Friendly Interface

The VK-65K is equipped with a PLC control system and a touchscreen interface, making it easy for operators to set and adjust parameters. This simplifies the packaging process and reduces the time required for training, allowing for faster production setup and more efficient operation.

Key Selling Points:

Precise Servo Motor-Controlled Film Pulling

The servo motor ensures accurate film pulling, leading to consistent bag sizes and minimal material waste.

Round Corner Cutting for Premium Packaging

The ability to cut round corners enhances the product’s aesthetic appeal and consumer experience.

Durable Sealing and Flexible Stick Bag Sizes

The clamp-type sealing mechanism provides strong, leak-proof seals, while the machine’s flexibility allows for various stick bag sizes to be packaged efficiently.

Conclusion

The VK-65K servo-controlled round corner packaging machine offers a highly efficient, precise, and aesthetically pleasing solution for packaging white sugar into stick bags. With its servo motor-controlled film pulling system, round corner cutting capability, and flexible packaging options, the VK-65K is the perfect choice for businesses looking to produce high-quality, user-friendly, and visually appealing sugar packaging at scale.
