Description

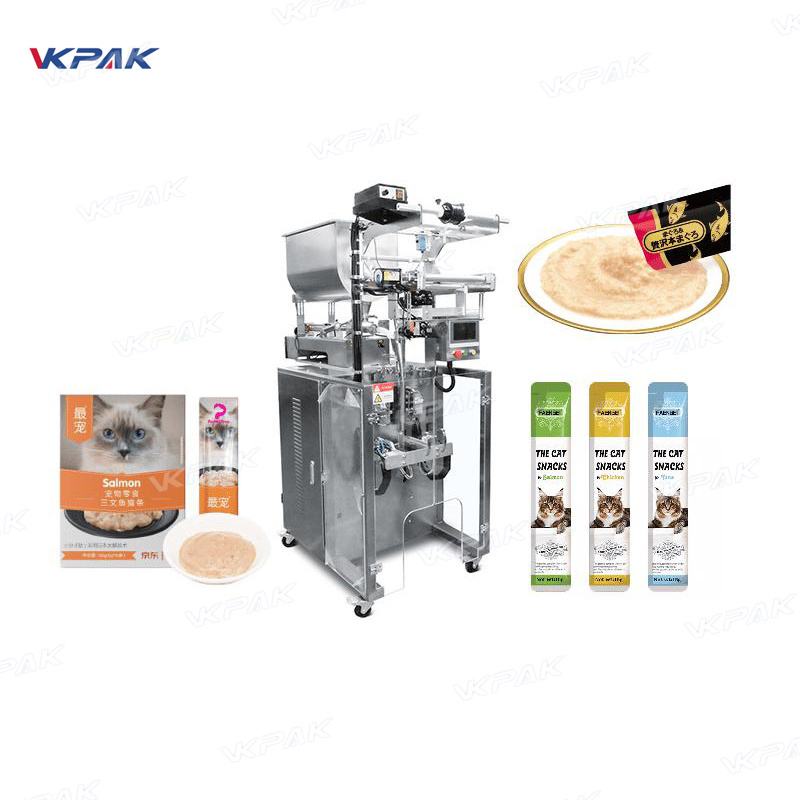

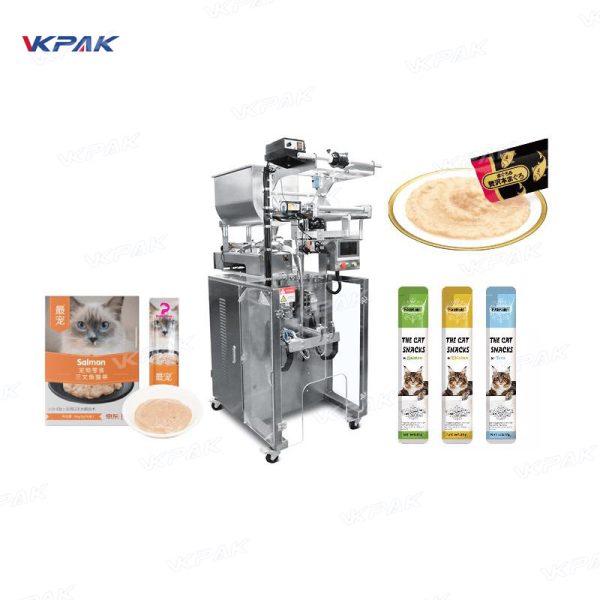

Single-chip microcomputer control system, screen display, frequency conversion governor, sealing knife automatically open when closing the machine.
Bag making, filling, measuring, sealing, date printing, and finished product conveying will be finished at one time(can also use PLC touch screen).

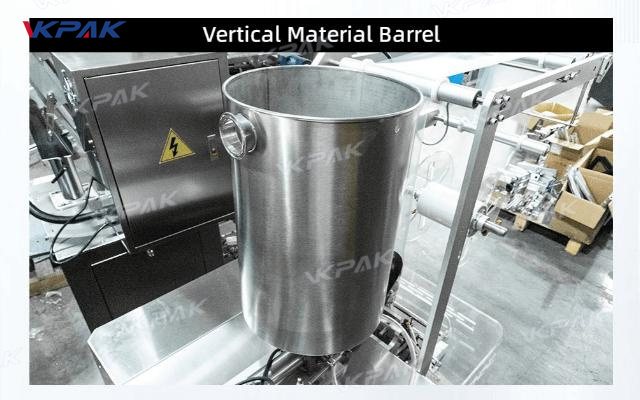

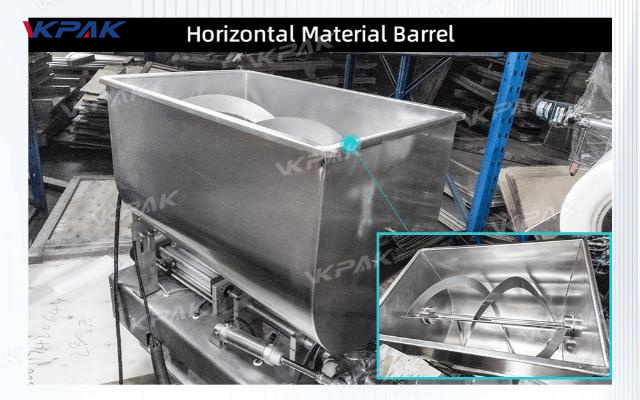

The constant temperature barrel can keep the semi-fluid at a suitable temperature to make packaging smoother.
| Model | VK-65J |
| Technical Parameters | 3-100ml |
| Measuring Scope | （L）:30 - 180 mm （W）:20-75mm |
| Packing Speed | 30 - 60 bags/min |
| Dimension ( L * W * H ) | 850 * 1100 * 1900 mm |
| Weight | 400kg |
| Total Power | 220V / 50Hz / 1.4kw |
| Gas Source | ≥0.6 |
Key Features
Vertical Form-Fill-Seal (VFFS) Mechanism:
This machine uses a VFFS system to form stick-shaped sachets vertically, fill them with the liquid, and then seal the packaging. This approach saves space and improves packing efficiency.
High-Speed Operation:
Equipped with high-speed filling mechanisms, it can produce a large number of sachets per minute, optimizing productivity and reducing packing time.
Precise Dosing System:
Accurate dosing mechanisms ensure each sachet contains the exact quantity of liquid, minimizing product wastage and maintaining consistency across all sachets.
Easy Adjustment for Sachet Size and Volume:
Adjustable settings allow for different sachet lengths, widths, and fill volumes, accommodating various packaging needs for different product types.
Multi-Lane Packing:
Machines often have multiple lanes (2, 4, 6, or more), allowing multiple sachets to be filled and sealed simultaneously, increasing production rates.
Touchscreen Control Panel:
An intuitive touchscreen interface enables operators to set parameters, monitor operations, and troubleshoot with ease.
Servo Motor and PLC Control System:
Advanced PLC and servo motor controls provide smooth, precise movements and high repeatability for consistent results.
Hygienic Stainless Steel Construction:
The machine is usually constructed from stainless steel, ensuring compliance with food safety standards and easy cleaning to prevent contamination.
Anti-Leak Sealing Technology:
Special sealing technology prevents leaks and spillage, preserving the integrity of the product.
Automatic Product Feeding and Film Roll System:
Automated systems for film feeding and liquid filling streamline the entire process and reduce the need for manual intervention.
Functions
Film Roll Unwinding and Sachet Formation:
The machine pulls packaging film from a roll, shapes it into a sachet, and applies a heat seal on the vertical side.
Automatic Filling of Liquid Snacks:
Precisely measures and fills each sachet with a predetermined amount of liquid snack, suitable for cat treats.
Heat Sealing and Sachet Cutting:
The top and bottom of each sachet are heat-sealed, creating individual sachets. A cutting mechanism then separates the sachets from each other.
Date Coding and Batch Printing (Optional):
Integrates with printers to apply dates or batch codes on each sachet, aiding in product traceability and compliance.
