Description
Sample: Suitable for packaging flour, cocoa powder, protein powder, seasoning powder, Chinese medicine powder, and washing powder
Film roll material: BOPP/Polyethylene, Aluminium/Polyethyene, Paper/PolyethylenePolyester/Aluminizer/Polyethylene and so on.
There are two types of screw feeding:
1. Vertical screw 2. Inclined screw
The vertical screw is suitable for powders that are prone to dust and can effectively prevent the material from scattering during the process of conveying to the molding machine.
Full-automatic weigh-form-fill-seal type, efficient and simple to use.
Use famous brand electric and penumatic components,stable and long life circle.
Use superior mechanical components, reduce the wear outless .
Easy to install film, auto correcting the excursion of the film .
Apply advanced operating system ,easy to use and reprogramable. To be used on Jintian High quality machine, it makes your packing work easy and efficiency
| Model | VK-61F |
| Packaging range | 1 -100 g |
| Bag Size | （L）:30-170 （W）:30-130 mm |
| Packaging speed | 30 - 60 bags/min |
| L*W*H | 900 * 1100 * 1900 mm |
| weight | 350kg |
| Total Power | 220V / 50Hz / 1.4kw |

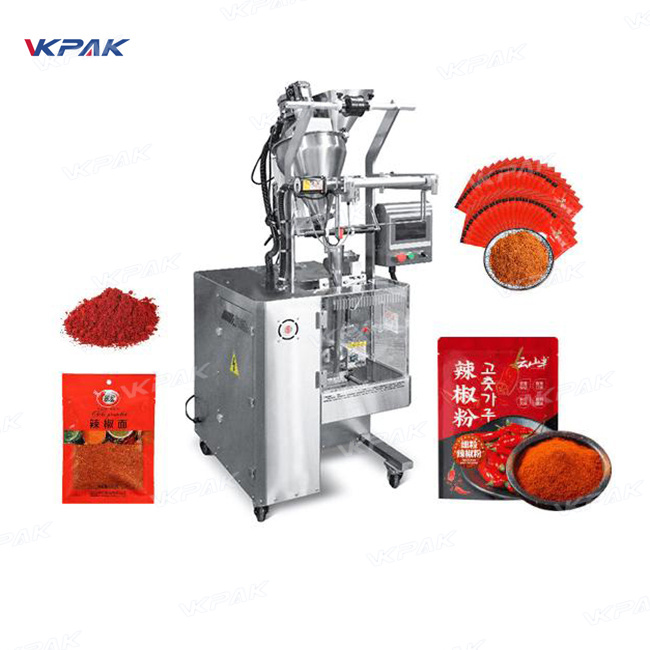

VK-61F Vertical Form Fill Seal (VFFS) bag packaging machine for chili powder is designed to automate the process of filling and sealing packets with fine powders.
Key Features
High-Speed Operation: Typically, these machines are capable of high-speed packaging, often packaging between 30 to 100 bags per minute, depending on the model and bag size.
Adjustable Bag Size: The machine can handle various bag sizes by adjusting the settings, making it versatile for different packaging needs.
Accurate Dosing: Equipped with an auger filler or volumetric filler, VFFS machines ensure precise dosing of chili powder to avoid wastage and maintain product consistency.
Material Compatibility: Made from stainless steel to ensure durability, hygiene, and resistance to corrosion caused by spices.
PLC Control System: A programmable logic controller (PLC) system with a touch screen interface for ease of operation and precise control over parameters like speed, fill weight, and bag length.
Photoelectric Sensors: These detect the color or logo on the packaging material to ensure accurate positioning of the print on each bag.
Temperature Control: Advanced temperature control ensures strong, airtight seals that preserve product freshness.
Dust Prevention: The machine often includes features to reduce dust emissions during the filling process, like dust extraction systems or sealed filling heads.
Date & Batch Coding: Some models come with an integrated printer or coder to print essential information (such as batch numbers and expiration dates) on the bags.
Automatic Film Adjustment: Automatically adjusts the film position to reduce film wastage and ensure smooth bag formation.
Functions
Bag Formation: The machine pulls the packaging film into a tube and shapes it into the required bag format.
Filling: The auger or volumetric filler dispenses an accurate amount of chili powder into the bag.
Sealing: Seals the bag edges using heat to form a secure closure.
Cutting: Cuts the sealed bags to the desired length, often with tear notches for easy opening by consumers.
Automatic Alarm System: Alerts operators if there is an issue with the film roll, low material, or other machine malfunctions.
Packaging Type Versatility: Can handle different bag styles, such as pillow pouches, gusseted bags, and even stand-up pouches depending on the model.
VFFS machines are well-suited for the spice industry due to their precision, speed, and ability to package powder products in airtight, attractive, and consumer-friendly bags.
