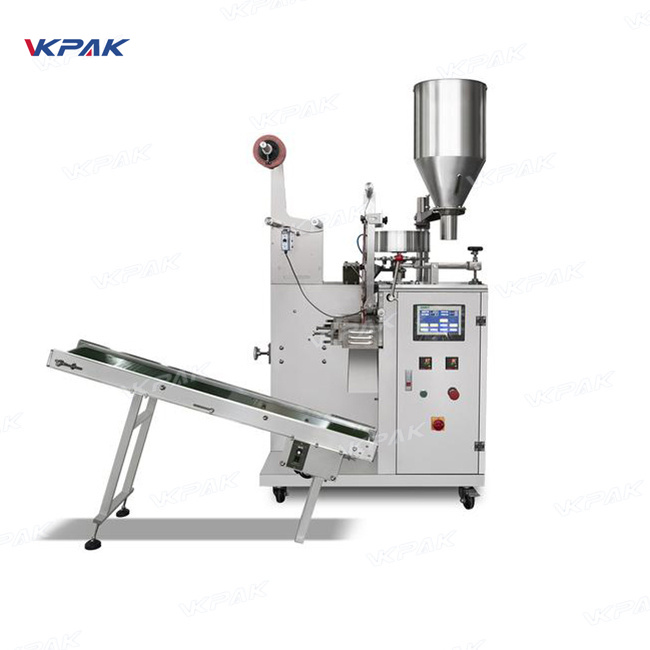

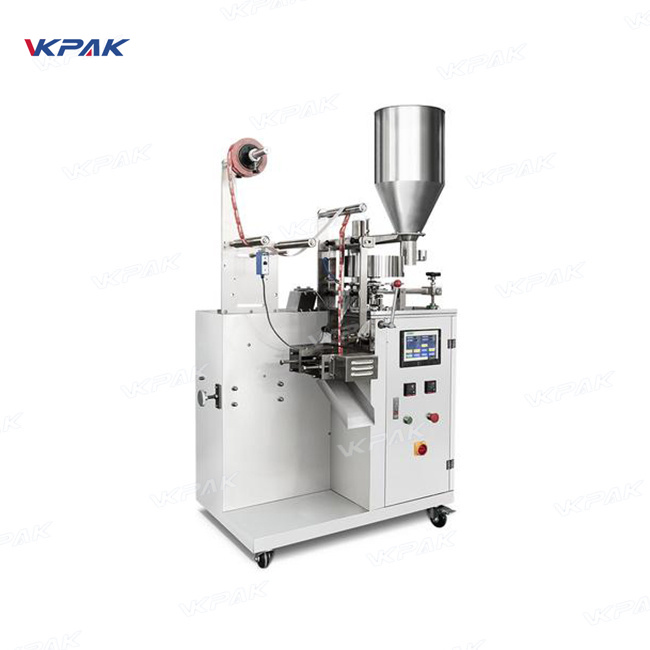

VK-40 Snus Tea Bag Packaging Machine
VK-40 Snus Tea Bag Packaging Machine
VK-40 Snus Tea Bag Packaging Machine

Suitable for small particle packaging such as snuff, broken tea, desiccant, etc.;

PLC controller and colour touch screen, all parameters can be set onthe control panel, easy to operate, language switchable;

Roller knife sealing, higher stability and faster speed.

  • Model: VK-40
  • Speed: 30-100 BAGS/MI
  • Bag Size: Length: 30-120mm Width:13-80mm
  • Pack Weight Range: 1-40g
  • Film The Material: BOPP / Polyethylene, Aluminium / Polyethylene, Paper / Polyethylene Polvester / Aluminizer/Polvethvlene, filter paper
  • Gas Source: electric
  • Bag Shape: Back seal, three side seal
  • Machine Size: 900*750*1750mm
  • Weight: 260kg
View Video Download PDF
Category:

Description

Bag Sample:

Bag Sample

Bag Type: Back seal

Customize snuff bags of different sizes according to customer needs

VK-40 Snus Tea Bag Packaging Machine

Before asking for a quote, you can measure the length, width and weight of the sample on hand. In this way, we can quickly give you a solution.

sample.jpgsample .jpg

Touch Screen: PLC controller and colour touch screen, all parameters can be set on the control panel, easy to operate, language switchable

1.PLC controller and colour touch screen, all parameters can be set onthe control panel,easy to operate,anguage switchable.JPG

Bag Former: Smaller formers designed specifically for snus

2.All parts in contact with materials are made of food grade 304 stainlesssteel,easy to clean，Using roller knife sealing, greatly improve the packaging speed.jpg

NameVK-40 Snus Tea Bag Packaging Machine
Pack range1-40g
Bag sizeLength: 30-110mm  Width: 13-80mm
Speed30-100Bags/min
Machine Dimension900*750*1750mm
Machine Weight260kg
PowerAC220V150-60HZ/1.5KW
The Material ofInner BagComposite membrane, Tea bag filter paper
Weighting MethodMeasruing Cups, Screw

Automatic Pick & Place bag infeed

Multi-Language HMl

Date Coding

304 stainless steel frame
