VK-169 is suitable for all kinds of broken tea, tea powder such as black tea, green tea, scented tea and other mixed teas;

All parts in contact with materials are made of foode grade 304 slainless steel, easy to clean;

2-head rotating hot cutter increases machine efficiencythe speed up to 80 bags/min.

  • Model: VK-169
  • Speed: 30-50BAGS/MIN
  • Bag Size: inner bag: (L): 50-70mm(W): 45-80mm outer bag: (L) 80-120mm (W)75-95mm
  • Pack Weight Range: 1-10g
  • Film The Material: Packing material: BOPP / Polyethylene, Aluminium / Polvethylene Paper / Polvethyiene, Polvester / Aluminizer / Polvethvlene and so on
  • Gas Source: ≥0.6Mpa
  • Bag Shape: three side seal
  • Machine Size: 1750*740*1950mm
  • Weight: 450kg
View Video Download PDF

Description

Sample: Suitable for small particles such as black tea, mixed tea, broken tea, etc.

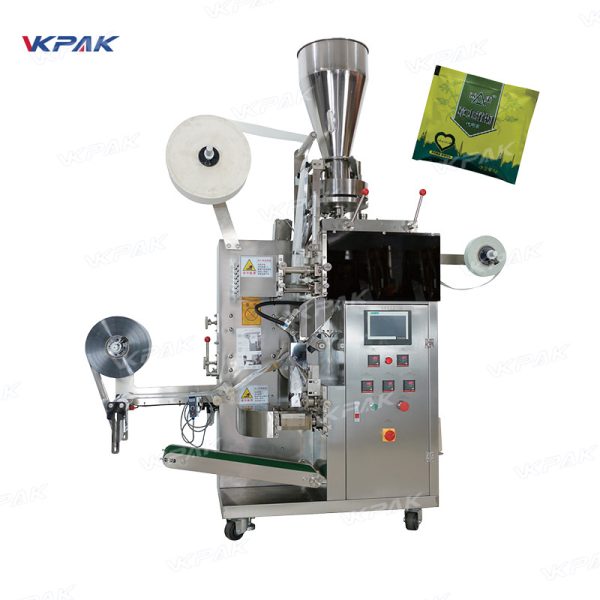

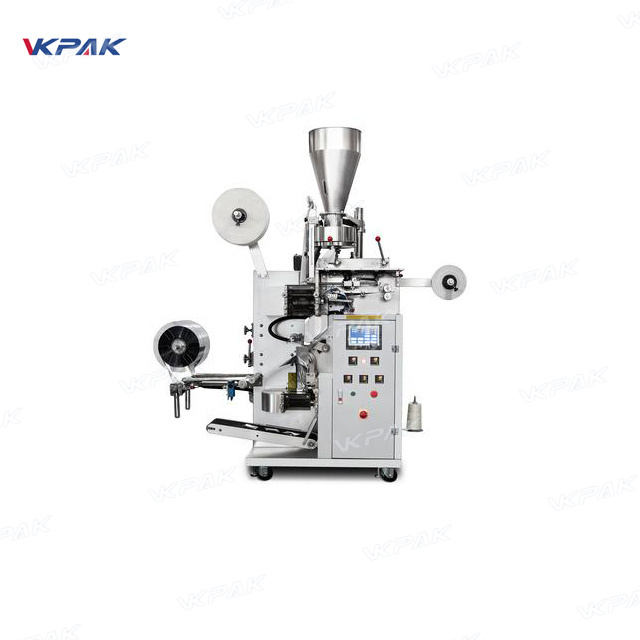

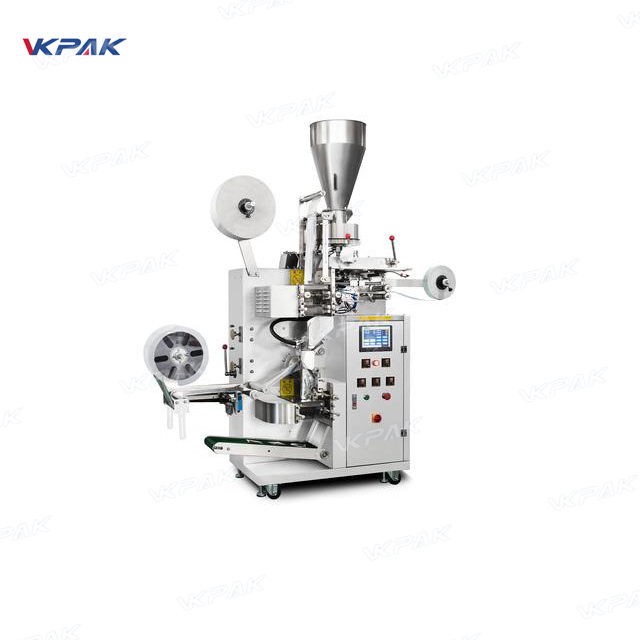

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

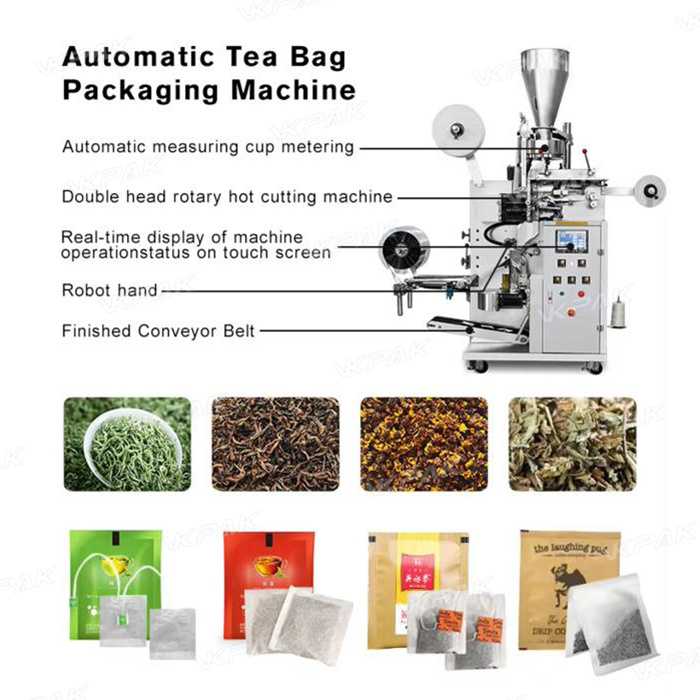

Touch Screen: PLC controller and colour touch screen. all parameters can be set onthe control panel. easy to operate, language switchable

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

The Packing Material Roll: The inner tea bag,outer envelope and label are all formed on machine

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

All parts in contact with materials are made of foode grade 304 stainless steel. easy to clean

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

2-head rotating hot cutter increases machine efficiency the speed up to 80 bags/min

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

The inner bag is packed into the envelope and sealed by PLC control

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

Automatic delivery of finished products

VK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine

NameVK-169 Fully Automatic Inner And Outer Tea Bag Packing Machine
Pack Range1-10g
Inner Bag Length50-70mm
Inner Bag Width45-80mm
Outer Envelope Length80-120mm
Outer Envelope Width75-95mm
Speed30-50Bags/min
Machine Dimension1750*740*1950mm
Machine Weight500kg
PowerAC220V150-60HZ/3KW
Gas Source≥0.6Mpa
Tea Bag TypeFlat Bag with Label and Thread
The Material ofOuter EnvelopeBOPP/ Polyethylene, Aluminium/ Polyethylene, Paper/ Polyethylene Polvester/ Aluminizer/ Polvethvlene
The Material of Inner BagFilter Paper
Weighting MethodMeasruing Cups, Screw

1. PLC intelligent control touch screen

2. 304 Stainless Steel Silo

3. 2-head rotating hot cutter increases machine efficiencythe speed up to 80bags/min
