ModelVKSP-PD 240/300/350/480
Packing speedMax 70 bags/min
Bag length30-150mm
Bag width10-110mm
Metering modeArgue screw
Packaging Capacity1-50/50-10g
Air pressure0.6-0.7MP
Power consumption1.5kw/220V.50Hz,1P(cancustomize380V,50Hz,3P)
Packingbacking sealing bag, Three side sealing, and four side sealing
Total Weight250kg
Packaging size1850*800*1200mm
View Video Download PDF

Description

1. All stainless steel exterior, which meets the requirements of GMP specifications in the food or pharmaceutical industry. It can automatically complete bag making, metering, cutting, sealing, slitting, counting, and can be configured to print batch numbers and other functions according to customer requirements.

2. Choose the brand PLC human-computer interaction system and 7-inch touch display screen, which are simple and convenient to operate, and have a fault self-diagnosis function.

3. The operation interface is arbitrarily set, the stepper motor is driven to control the bag length, the performance is stable, the adjustment is convenient, and the detection is accurate.

4. It has the function of automatically alerting the output to be set, and the equipment automatically displays the operating speed of the packaging.

5. A device specially designed and manufactured for packaging materials whose material is water-soluble film.

6. The sealing form of packable particles, powders, and liquid products (three-sided sealing, back sealing, and four-sided sealing) can be customized.

Application

VKPAK fully automatic PVA Film Packaging Machinery is suitable for pharmaceutical, daily chemical, food, pesticide and special industries and other products.

Product Parameters

Following specification is one of the models, please kindly send us your detailed requirements, we will choose the suitable model for you.

ModelVKSP-PD 240/300/350/480
Packing speedMax 70 bags/min
Bag length30-150mm
Bag width10-110mm
Metering modeArgue screw
Packaging Capacity1-50/50-10g
Air pressure0.6-0.7MP
Power consumption1.5kw/220V.50Hz,1P(cancustomize380V,50Hz,3P)
Packingbacking sealing bag, Three side sealing, and four side sealing
Total Weight250kg
Packaging size1850*800*1200mm

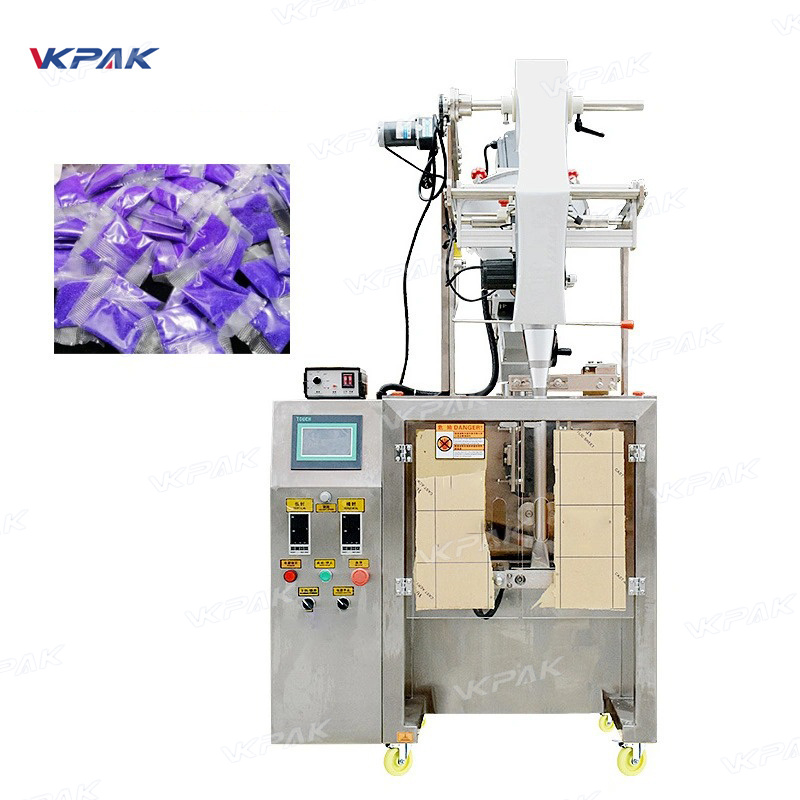

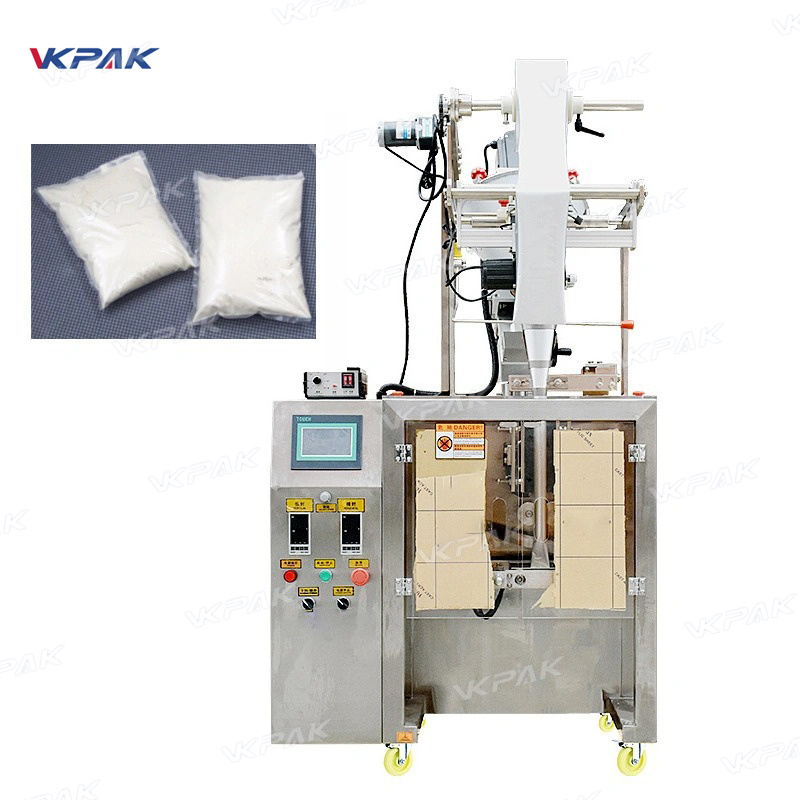

Automatic Vertical PVA Biodegradable Film Packing Machine Details
